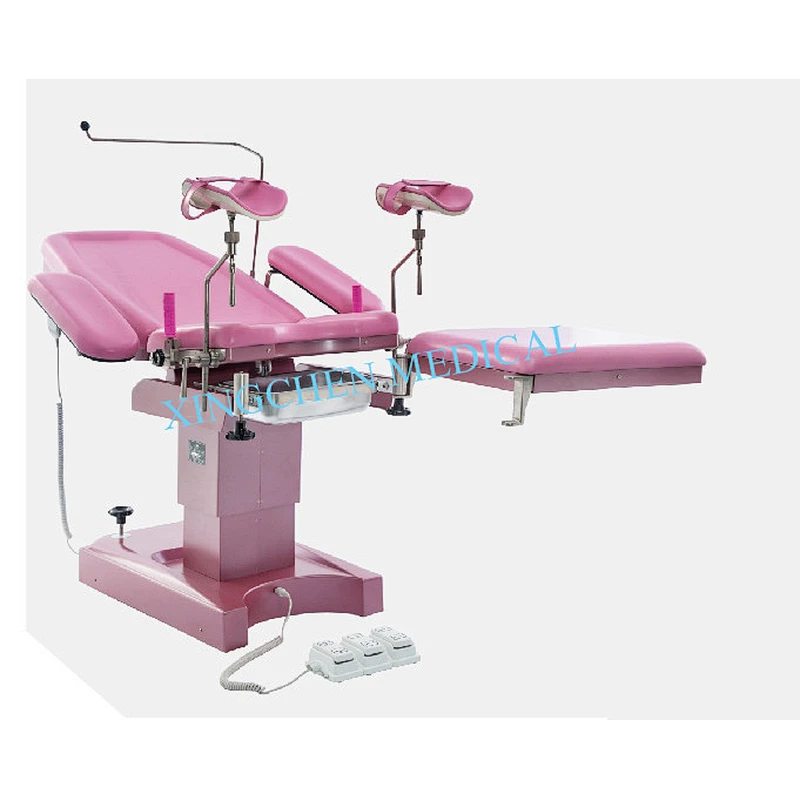

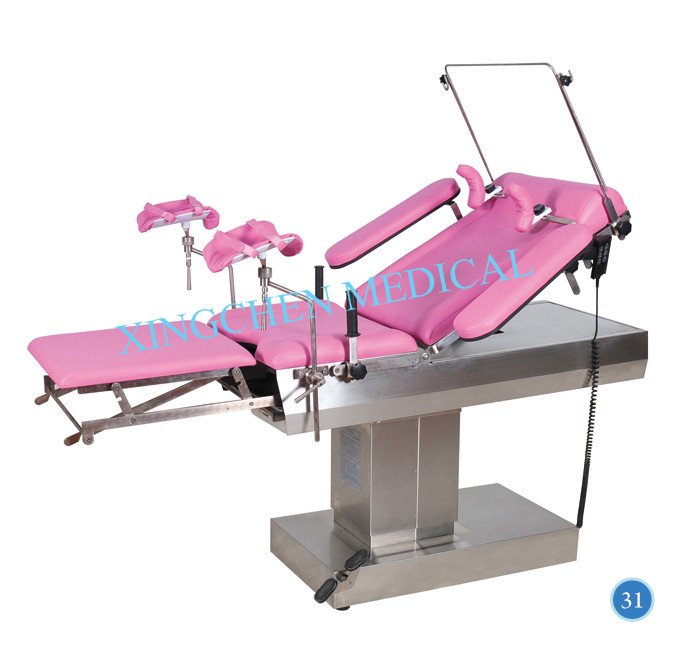

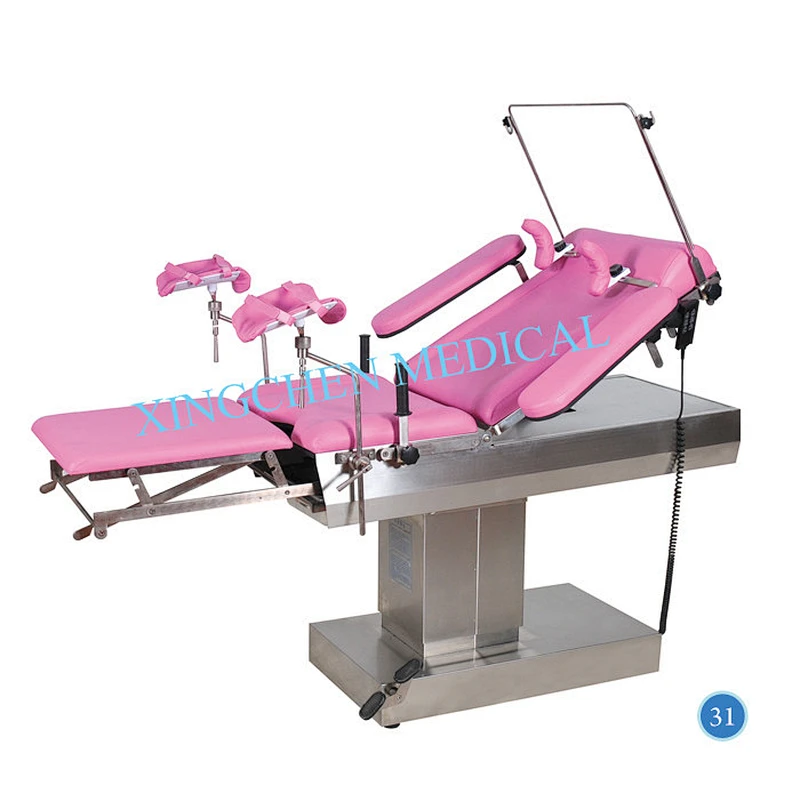

XC081201 type Electric obstetric tablebenefits from international advanced technology of the similar products. It is suitable for birth-giving, obstetrics surgery ,diagnosis, examination and even urgent caesarean section.
The board can move up and down and lean back and forth. The back section can be folded and turned as well.
All these motions are related with the electric putter from well-known brand.
During the process, it makes little noise and is very stable. It has invisible auxiliary units, easy for doctors to manipulate. The base is controlled by foot to fix or move.
The shield, board floor and basin are made of stainless steel with good-quality,good-looking and easy for cleaning and disinfection.
| Technical Data | XC081201
(P02) |
| Overall length | 1,900mm |
| Width of table top | 600mm |
| Floor minimun altitude | 750mm |
| Traveling schedule | 250mm |
| Back Section | +60°/0° |
| Trendelenburg | 15° |
| Reverse Trendelenburg | 15° |
| Leg board structure | Hideaway隐藏式 |
| Accessories | Anesthetics Screen | √ |
| Shoulder Rest | √ |
| Arm Support | √ |
| Handle | √ |
| Knee Crutch | √ |
| Footboard | √ |
| Package size: 143×82×96cm |
| G.W:225KG ; N.W: 170KG |
XC081202 electric obstetric bed is driven by low voltage
DC motors with advanced backup power, safe and stable.
Four wheels lifting by electric controller.
Leg boards can also open by 90° to be convenient for Medical staff to operate or to be apart according to requirements.
The mattress is foam molding with good shape and easy to clean.
XC081203 Electric gynecology bed is mainly used for clinical examinations, driven by low-voltage
DC motor with advanced backup power, safe and reliable.
The bed frame is made of high quality stainless steel or spray painting carbon steel for two different models.
And the mattress is foam molding with good shape and easy to clean.
| Technical Data | XC081202
(DC01B) | XC081203
(DC02C) |
| Overall length | 2,020mm | 1,400mm |
| Width of table top | 600mm | 600mm |
| Floor minimun altitude | 660mm | 600mm |
| Max Height of altitude | 960mm | 1000mm |
| Back Section | | |
| Trendelenburg | | |
| Reverse Trendelenburg | | |
Accessories
| Anesthetics Screen | √ | √ |
| Shoulder Rest | √ | √ |
| Arm Support | √ | √ |
| Handle | √ | √ |
| Knee Crutch | √ | √ |
| Footboard | √ | √ |
| Package size: | 155×82×88cm | 150×82×77cm |
| G.W:216KG ; N.W: 148KG | G.W:148KG ; | N.W: 93KG |
