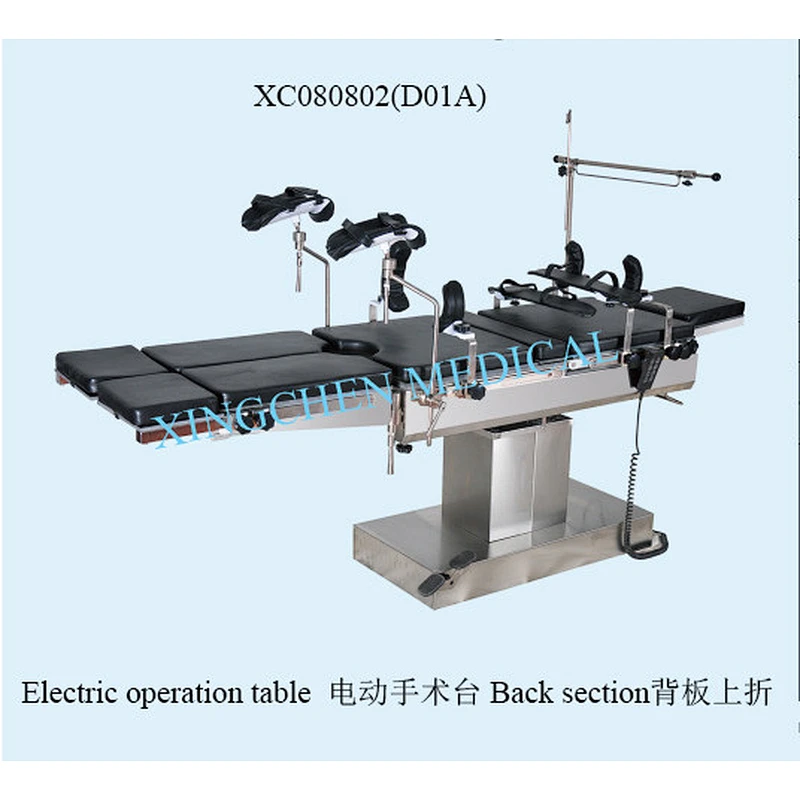

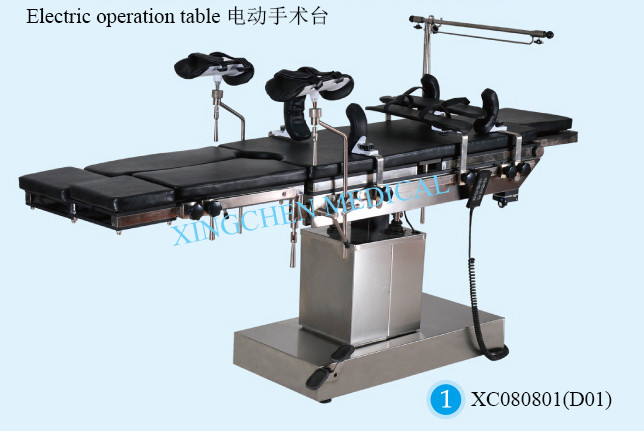

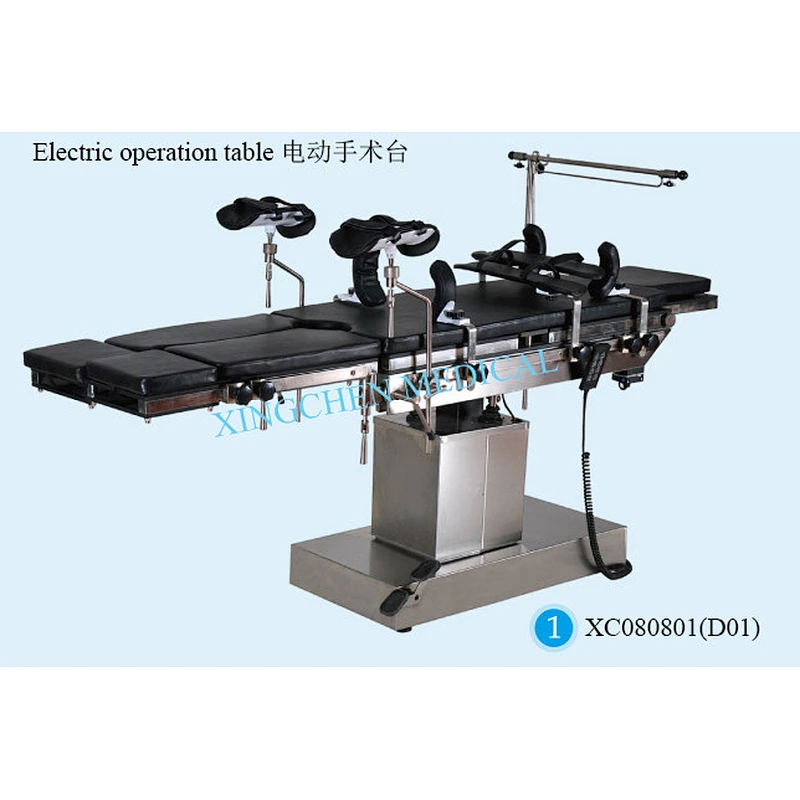

XC080801 & XC080802 Electric operation table
Key Remarks:Level shifted floor, can be used with C-ARM
Electricoperation table makes contribution to the surgeries of chest, abdomen, ophthalmology, otolaryngology, gynecology, obstetrics and urology, etc. It has the following advantages:
1. The board can shift longitudinally. It is made of plastic plate with good-quality and it can be used with C-ARM to match X-ray or take photos.
2. The leg board is dismantable. It can be adjusted by hand to lean from left to right and move up and down, convenient for urology operation.
3. The manipulator used with 24V DC is easy to operate, safe and reliable.
4. The board is controlled by pressing buttons and electric handspike to move up and down, lean from left to right and move back and forth.
| Technical Data | XC080801
(D01) | XC080802
(D01A) |
| Overall length | 2100mm | 2100mm |
| Width of table top | 480mm | 480mm |
| Height adjustment | 750-1,000mm | 750-1,000mm |
| Trendelenburg | 25° | 25° |
| Reverse Trendelenburg | 25° | 25° |
| Lateral adjustment | ±20° | ±20° |
| Longitudinal displacement | 400mm | 400mm |
| Head rest | 45/-90° | 45/-90° |
| Waist bridge | 100mm | 100mm |
| Swiveling of leg plate | 90° | 90° |
| Footboard | √ | √ |
| Back Section | ----- | 0-45° |
| Accessories | Anesthetics Seren | √ | √ |
| Shoulder Rest | √ | √ |
| Arm Support | √ | √ |
| Body Support | √ | √ |
| Knee Crutch | √ | √ |
| Cushion | √ | √ |
| Package size | 132*72*97cm |
| G.W | 248KG | N.W | 171KG |

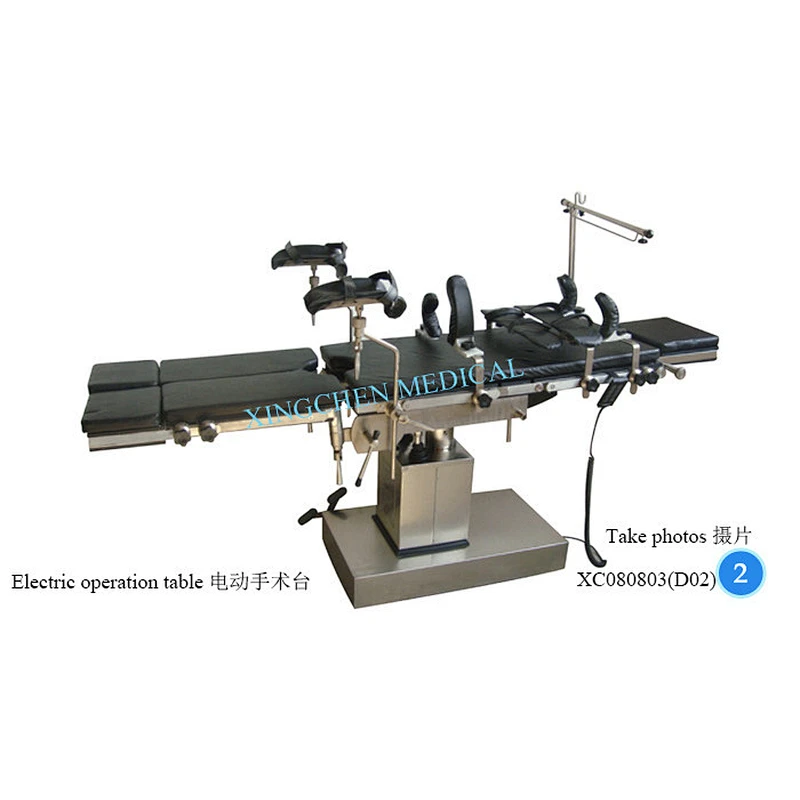

XC080803 Electric operation table
This product is used for the surgeries of head, neck,chest, abdomen, perineum, limbs, obstetrics,ophthalmology, otolaryngology and orthopedics, etc.
It has double plastic boards and it can be X-rayed.
The dismantable leg board could be outreached by 90°, suitable for urology surgery.
The board floor can move and down, lean from left to right and move back and forth. The back section can be folded and turned.
All these motions are motivated by electric equipment, flexible, safe and reliable.
| Technical Data | XC080803
(D02) |
| Overall length | 2,100mm |
| Width of table top | 480mm |
| Height adjustment | 750-1,000mm |
| Trendelenburg | 25° |
| Reverse Trendelenburg | 25° |
| Lateral adjustment | ±20° |
| Head rest | 45/-90° |
| Back Section | 45/-15° |
| Waist bridge | 100mm |
| Leg plate(s) | 90° |
| Swiveling of leg plate | 90° |
| Footboard | √ |
| Accessories | Anesthetics Screen | √ |
| Shoulder Rest | √ |
| Arm Support | √ |
| Body Support | √ |
| Knee Crutch | √ |
| Cushion | √ |
| Package size: 132*72*97cm |
| G.W:248KG ; N.W: 171KG |
