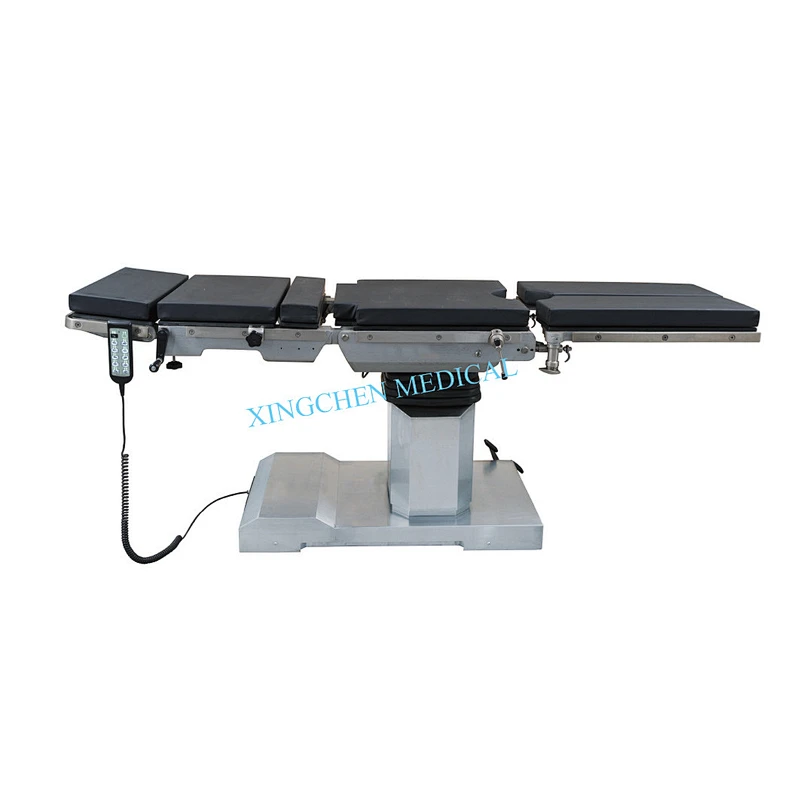

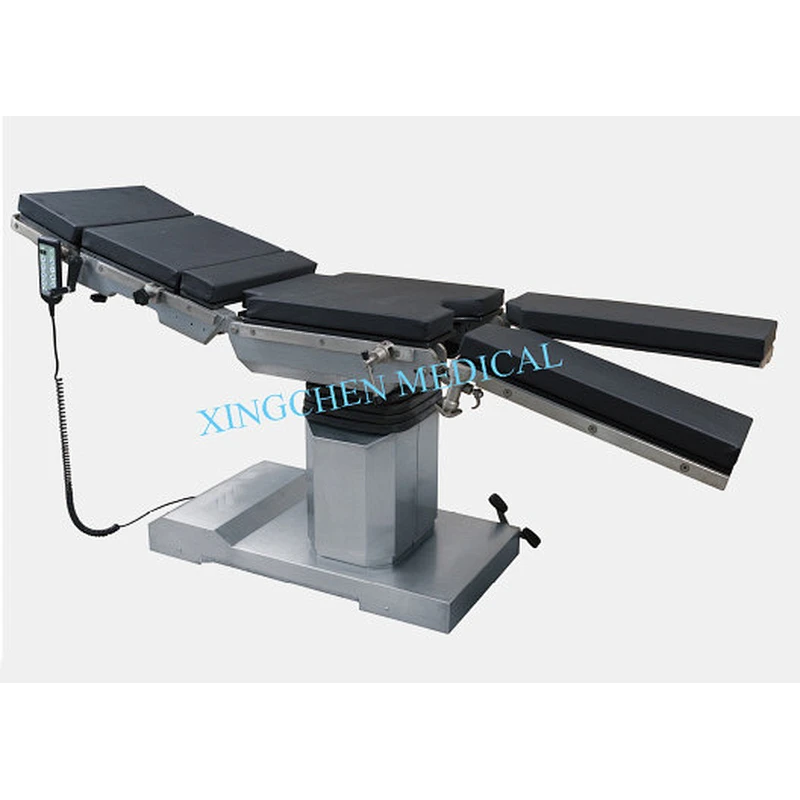

XC080901Electric-hydraulic operation table
Key remarks: Electric-hydraulic (C-arm)
This product is used for the surgeries of head, neck,chest, abdomen,perineum,limbs,obstetrics,ophthalmology, otolaryngology and orthopedics, etc.
The moving of the board floor is Controlled by electric hand-spike, easy and flexible.
The floor is made of synthetic board with good-quality and can be used with C-ARM.
| Technical Data | XC080901
(DH04) |
| Overall length | 2,100mm |
| Width of table top | 550mm |
| Height adjustment | 750-1,000mm |
| Trendelenburg | 25° |
| Reverse Trendelenburg | 25° |
| Lateral adjustment | ±20° |
| Longitudinal displacement | 300mm |
| Head rest | 45/-90° |
| Back Section | 50/-30° |
| Waist bridge | 120mm |
| Leg plate(s) | 90° |
| Swiveling of leg plate | 90° |
Accessories
| Anesthetics Screen | √ |
| Shoulder Rest | √ |
| Arm Support | √ |
| Body Support | √ |
| Knee Crutch | √ |
| Cushion | √ |
| Package size: 152×82×104cm |
| G.W:268KG ; N.W: 208KG |

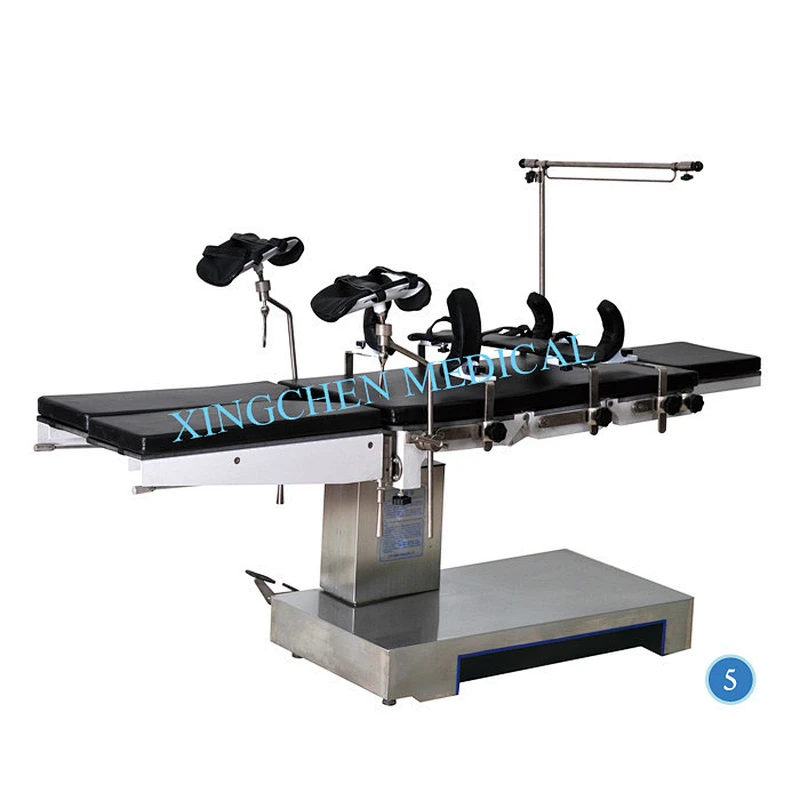

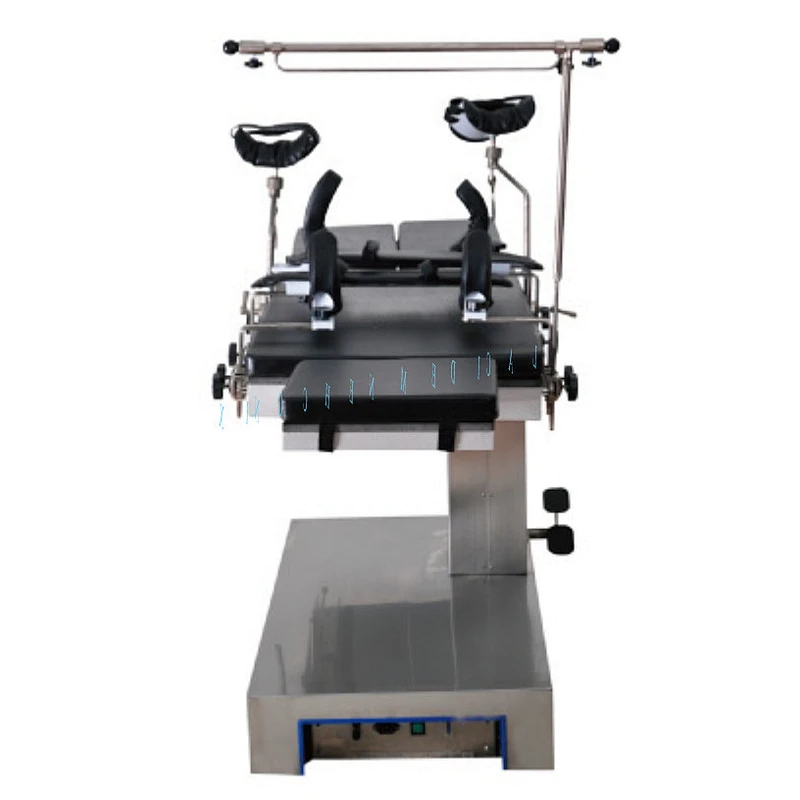

XC080902Electric-hydraulic operation table (Partial column)
This Electric-hydraulic operation table is suitable for the surgery of orthopedics, obstetrics, ophthalmology, otolaryngology, urology and so on.
This kind of table is an ideal surgery equipment with multi-function and good-quality.
This product is consisted of electric hydraulicsystem, controlling circuit and floor board which
Can be X-rayed. The design of partial column Provides more space for X-ray and can match C-ARM better.
The five-bed type of the floor board with Ergonomic simulation is convenient to adjust the cervical, Lumbar and spinal position.
| Technical Data | XC080902
(DH05) |
| Overall length | 2,000mm |
| Width of table top | 500mm |
| Height adjustment | 700-1,000mm |
| Trendelenburg | 15° |
| Reverse Trendelenburg | 30° |
| Lateral adjustment | ±20° |
| Head rest | 30/-90° |
| Back Section | 35/-55° |
| Waist bridge | 60/-10° |
| Leg plate(s) | 90° |
| Swiveling of leg plate | 90° |
Accessories
| Anesthetics Screen | √ |
| Shoulder Rest | √ |
| Arm Support | √ |
| Body Support | √ |
| Knee Crutch | √ |
| Cushion | √ |
| Package size: 132×78×96cm |
| G.W:290KG ; N.W: 238KG |

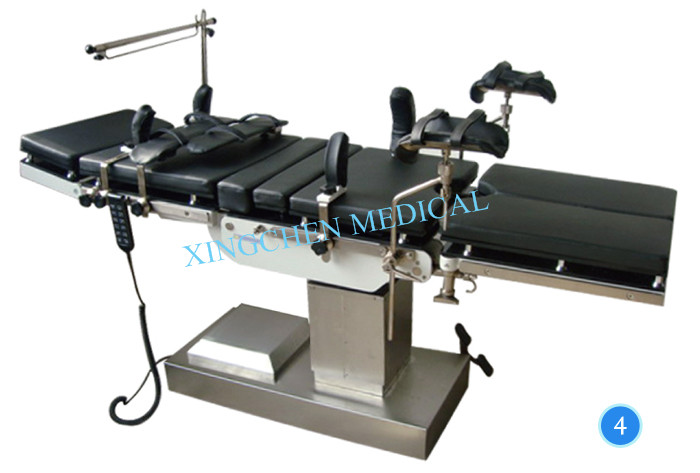

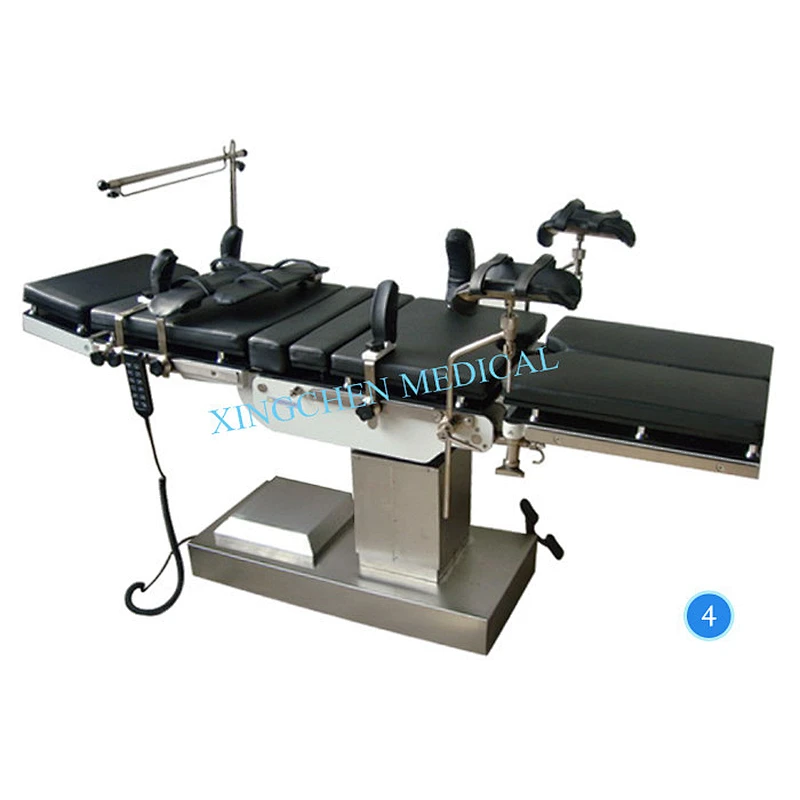

XC080903 Electric-hydraulic operation table
This electric-hydraulic operating table is used for general surgery,heart and kidney, orthopedics, neurosurgery, gynecology, urology and other surgical.
It's driven by import electric-hydraulic system with advanced backup power, safe and reliable.
The main frame is made by aluminum casting mold, The base cover is made of stainless steel, slushing and easy to clean.
Technical Data
| XC080903
(D01B) |
| Overall length | 2,020mm |
| Width of table top | 500mm |
| Height adjustment | 750-1,050mm |
| Translation | 300mm |
| Trendelenburg | |
| Reverse Trendelenburg | |
| Lateral adjustment | |
| Head rest | |
| Back Section | |
| Waist bridge | |
| Leg plate(s) | |
| Swiveling of leg plate | |
Accessories
| Anesthetics Screen | √ |
| Shoulder Rest | √ |
| Arm Support | √ |
| Body Support | √ |
| Knee Crutch | √ |
| Cushion | √ |
| Package size: 142*74*102cm |
| G.W:281KG ; N.W: 220KG |
