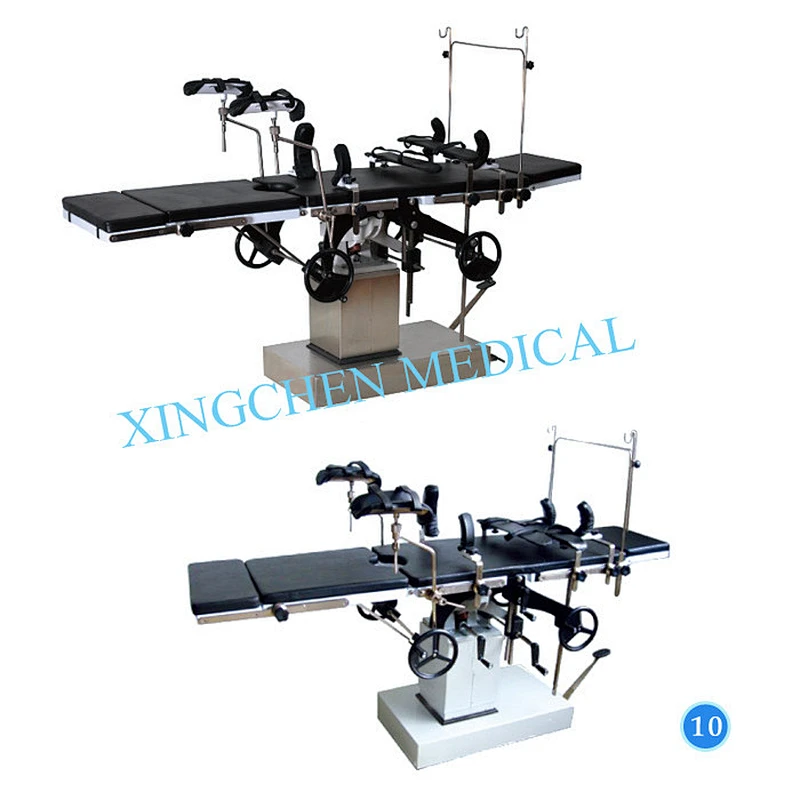

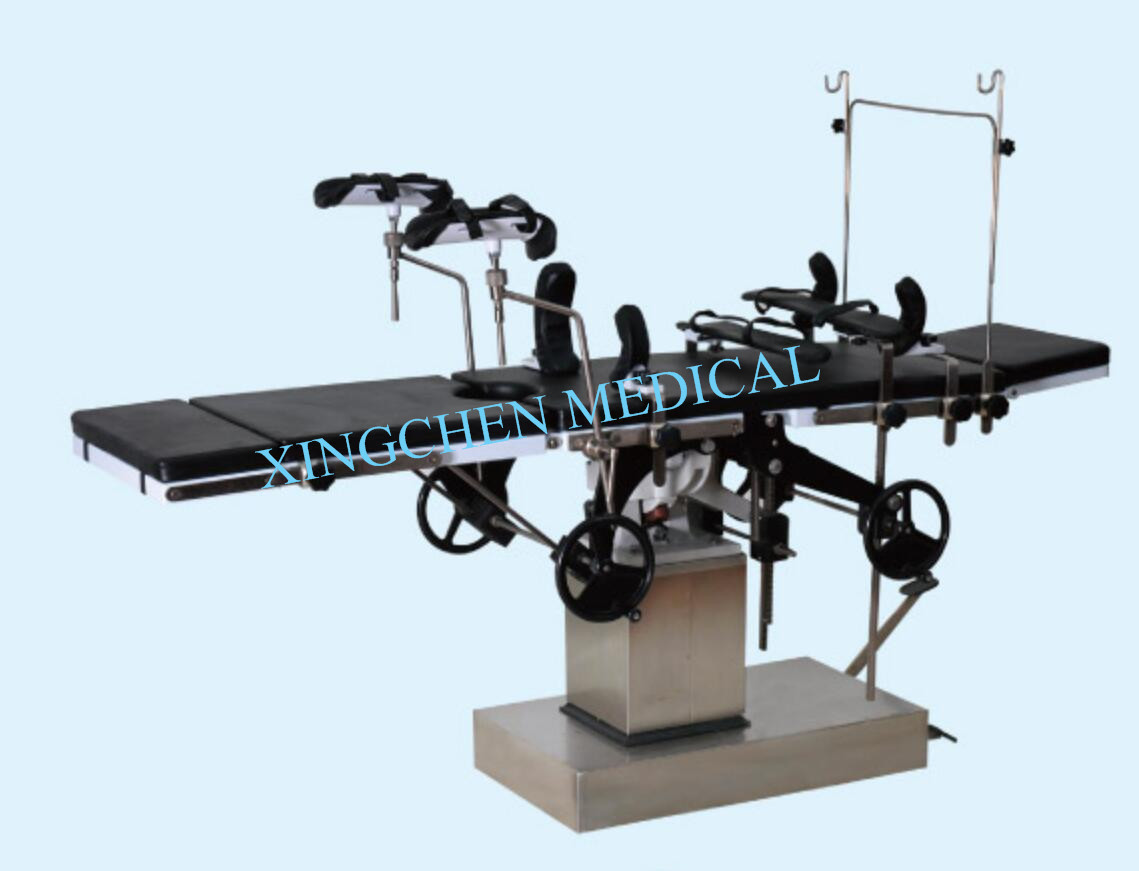

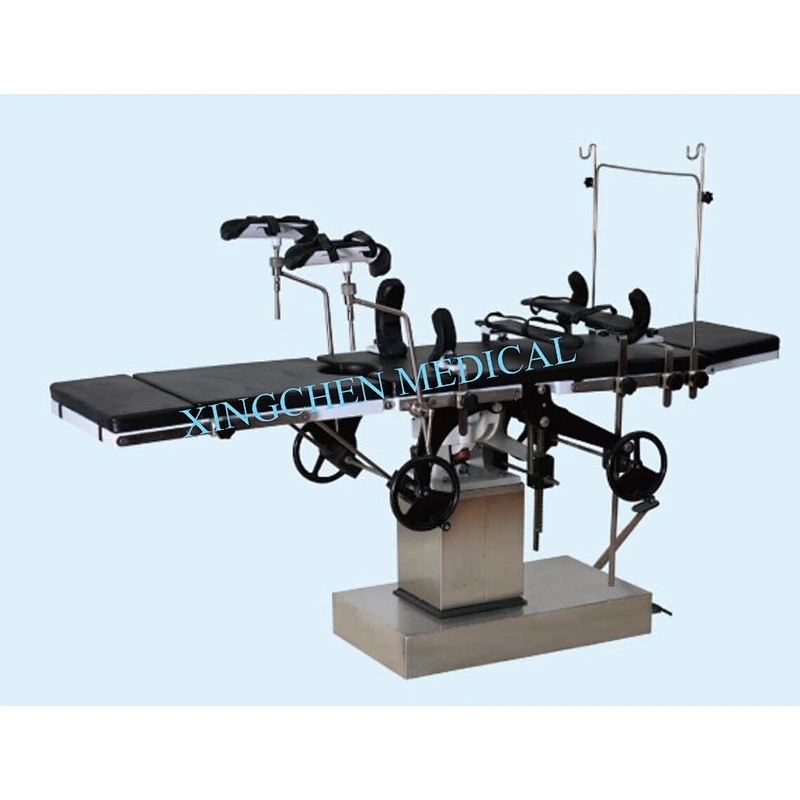

XC081001 type Side-manipulating operation table
Side-manipulating operation table is used for the surgery of head, neck,abdomen, perineum, limbs, gynecology, ophthalmology,otolaryngology and orthopedics, etc.
The up and down moving is controlled by hydraulic system.
The adjustment is manipulated at the two sides of the board.
The material of the board and the shield is stainless steel with good quality.

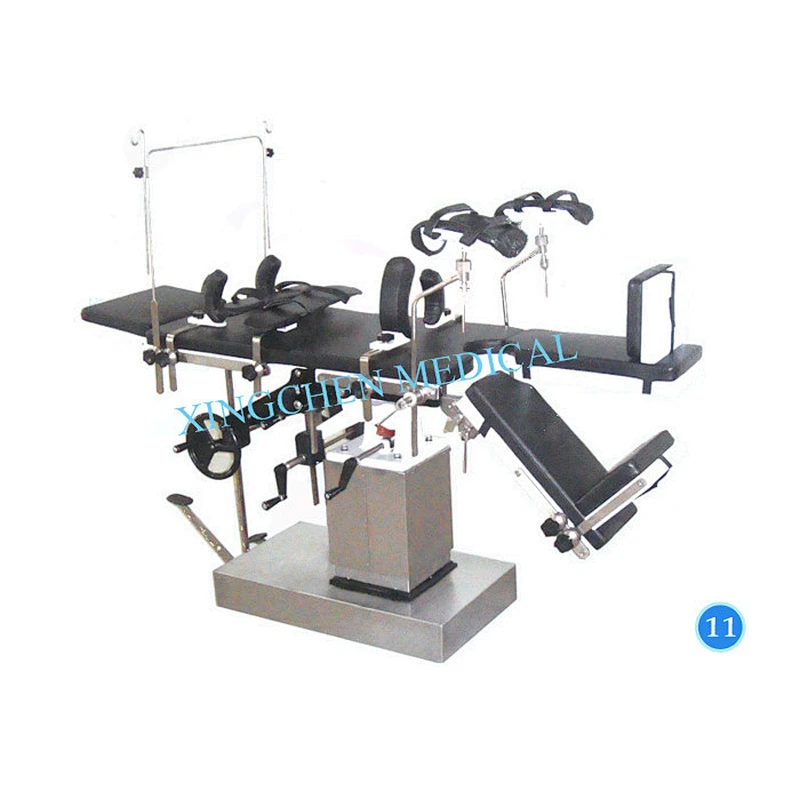

XC081002 type Side-manipulating operation table (dividable leg) is used for the surgery of head, neck, abdomen,perineum, limbs, gynecology, ophthalmology,
Otolaryngology and orthopedics, etc.
The up and down moving is controlled by hydraulic system.
The adjustment is manipulated in the two sides of the board.
XC080802 has the following advantages:
1 The adjustment of the back section and leg board is easyand flexible under the force of the spring and gravity.
2 The leg board is dismantable and it can be not only outreached but also folded, convenient for urology surgery.
3.The material of the board and the shield is stainless steel with good quality.
| Technical Data | XC081001
(S3001) | XC081002
(S3001A) |
| Overall length | 2,100mm | 2,100mm |
| Width of table top | 480mm | 500mm |
| Floor minimun altitude | 750mm | 750mm |
| Traveling schedule | 250mm | 250mm |
| Trendelenburg | 30° | 30° |
| Reverse Trendelenburg | 20° | 20° |
| Lateral adjustment | ±18° | ±18° |
| Head rest | 45/-90° | 45/-90° |
| Back Section | +75°/-18° | +75°/-18° |
| Waist bridge | 120mm | 120mm |
| Leg plate(s) | 90° | 90° |
| Foot board | √ | √ |
Accessories
| Anesthetics Screen | √ | √ |
| Shoulder Rest | √ | √ |
| Arm Support | √ | √ |
| Body Support | √ | √ |
| Knee Crutch | √ | √ |
| Cushion | √ | √ |
| Package size: 132×72×102cm |
| G.W:200KG ; N.W: 155KG |
This product is used for the surgeries of head,neck, chest, abdomen, perineum, limbs, gynecology,ophthalmology, otolaryngology and orthopedics, etc.
The up and down moving is controlled by hydraulic system.
The adjustment is manipulated at the side of head section.
The material of the board and shield can be chosen between cold-rolled carbon steel and stainless steel with good-quality according to the demands of
our customers.

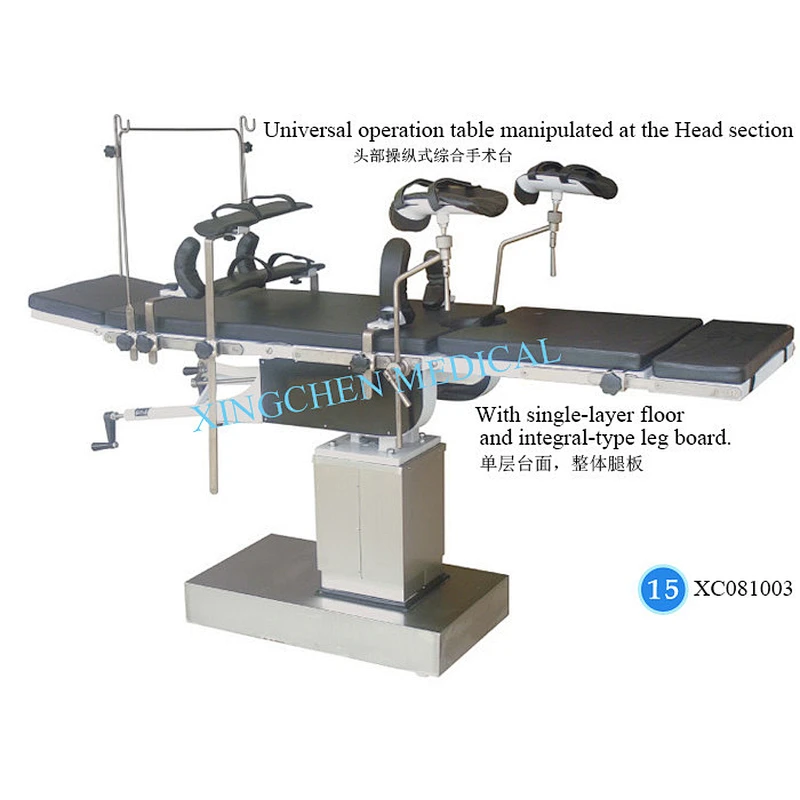

XC081003 equipped with single-layer floor and integral-type leg board.

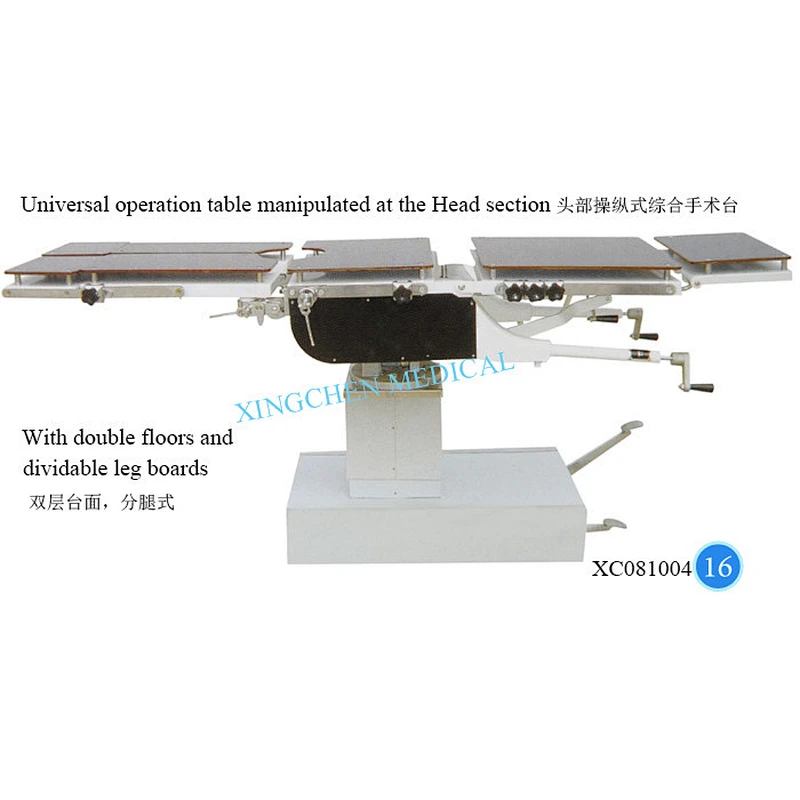

XC081004 is with double floors( convenient for X ray andphoto-taking)and dividable leg boards( dismantable, folded and outreached, convenient for urology surgery).
| Technical Data | XC081003
(S3008) | XC081004
(S3008A) |
| Overall length | 2,100mm | 2,100mm |
| Width of table top | 480mm | 480mm |
| Floor minimun altitude | 800mm | 800mm |
| Traveling schedule | 250mm | 250mm |
| Trendelenburg | 50° | 50° |
| Reverse Trendelenburg | 30° | 30° |
| Lateral adjustment | ±20° | ±20° |
| Head rest | 45/-90° | 45/-90° |
| Back Section | +80°/-10° | +80°/-10° |
| Waist bridge | 120mm | 120mm |
| Leg plate(s) | 90° | 90° |
| Foot board | √ | √ |
| Swiveling of leg plate | | 90° |
| Double-decked floor | | √ |
| Accessories | Anesthetics Screen | √ | √ |
| Shoulder Rest | √ | √ |
| Arm Support | √ | √ |
| Body Support | √ | √ |
| Knee Crutch | √ | √ |
| Cushion | √ | √ |
| Package size: 128×75×103cm |
| G.W:255KG ; N.W: 205KG |
