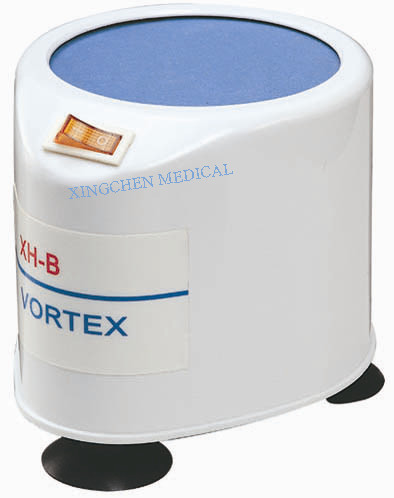

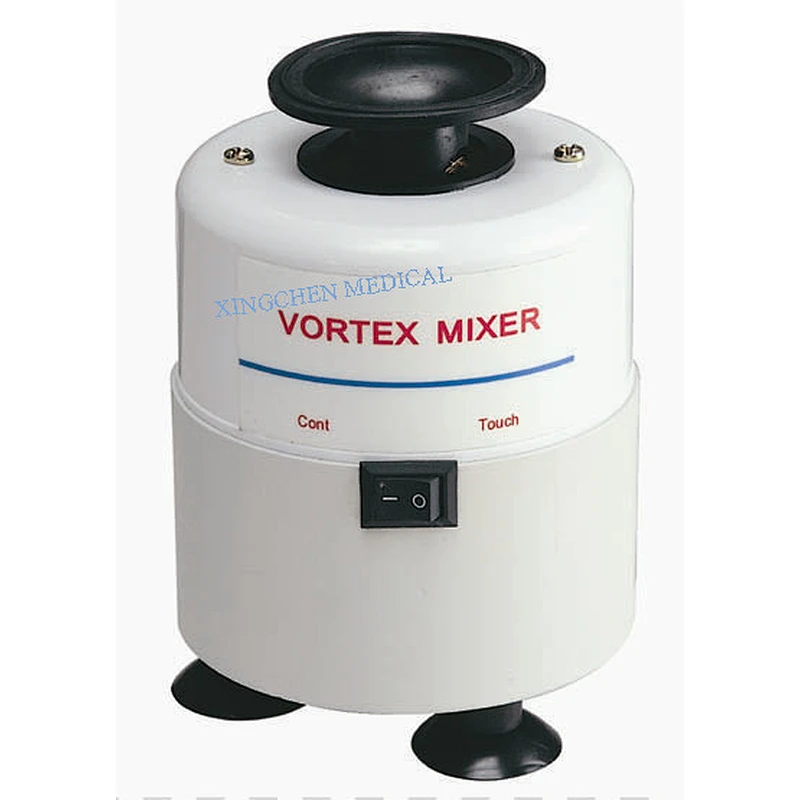

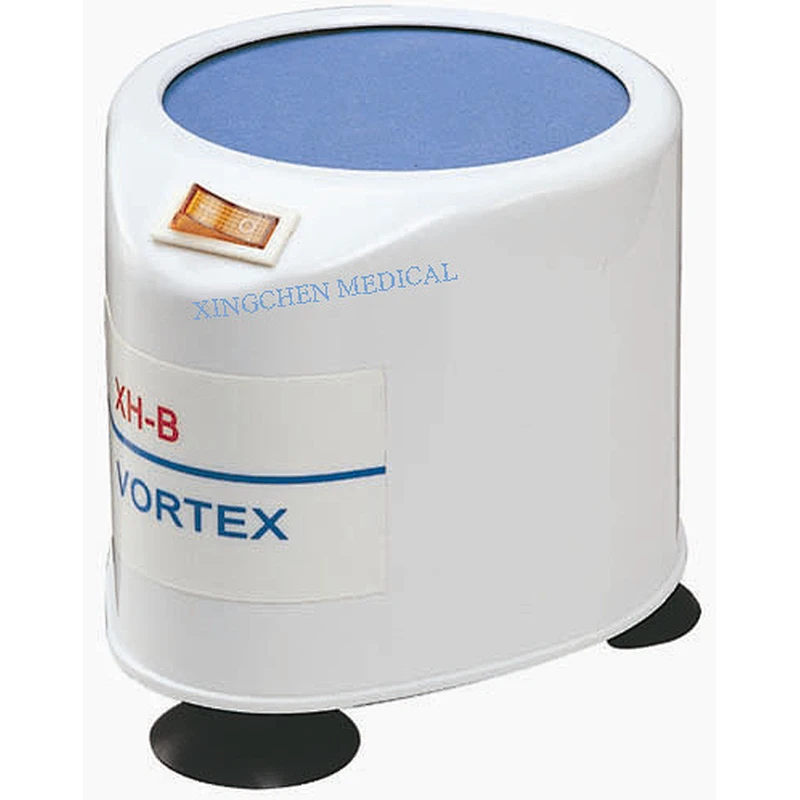

High performance & low noise AC motor to make rapid and thorough mixing。
REF | Features: | Technical Data |
XC141101 | Wide application range: Can be used for mixing samples in Test tubes,Centrifuge tubes, flasks etc.
Specified designed operation panel, Easy to clean and wear-resisting.
Shaking speed can be adjusted automatically based on the pressure degree. | Operation method :Circling
Circling diameter :3.6mm
Rating speed:2600 rpm
Running model : Continuous
Working plate size::Ø100mm
Input Voltage(frequency):AC 220V±10% (50/60HZ)
Output power:12W
Permissible relative moisture :80%
Permissible ambient temperature:5-50°C
Dimensions (W x H x D):100 x 130 x 135 mm
Net weight: 2.3 KG |
XC141102 | Adapted to the mixing of finger tip blood sample, It can mix the sample thoroughly without damaging the blood cells, it also can fit different types of centrifuge tubes.
Continuous and Inching model available, Easy to operate.
Reasonable design, compact structure and stable performance. | Operation method :Circling
Circling diameter:3mm/4mm
Rating speed:2800 rpm
Running model : Continuous,short
Working plate size::Ø 55mm
Input Voltage(frequency) :
AC 220V±10% (50/60HZ)
Output power:30W
Permissible relative moisture :80%
Permissible ambient temperature :5-50°C
Dimensions (W x H x D):Ø 110 x 150 mm
Net weight: 2.5 KG |
XC141103 | Adapted to re-suspension particles, extract drugs and vortex cell suspensions. Mixing tissue samples , And also can be used to ELISA reaction and RIA Tests.
Multiple plates available, can be used for various kinds of test tubes and small containers.
Continuous and Inching model available, Easy to operate, Knob design makes it easy carry out step-less speed regulating.
Reasonable design, compact structure and stable performance. | Operation method :Circling
Circling diameter :4.4mm
Rating speed:1000-2800 rpm
Running model : Continuous,short
Input Voltage(frequency) :AC 220V±10% (50/60HZ)
Output power :30W
Permissible relative moisture :80%
Permissible ambient temperature :5-50°C
Dimensions (W x H x D):180 x 120 x 180 mm
Net weight: 4.5 KG |
