Features:
It can carry out two functions(Roll and Swing), adapted to mixing of blood samples, adhesive materials and Liquid - solid suspensions.
Driven by High performance DC declaration Motor, Running stable, No noise, Long lifetime。
Reasonable space between the rolls makes it fit for different size tubes.
According to actual requirements, we can supply coratation-reverse cross model, The roller can be lengthened within a certain range to fit for more tubes.

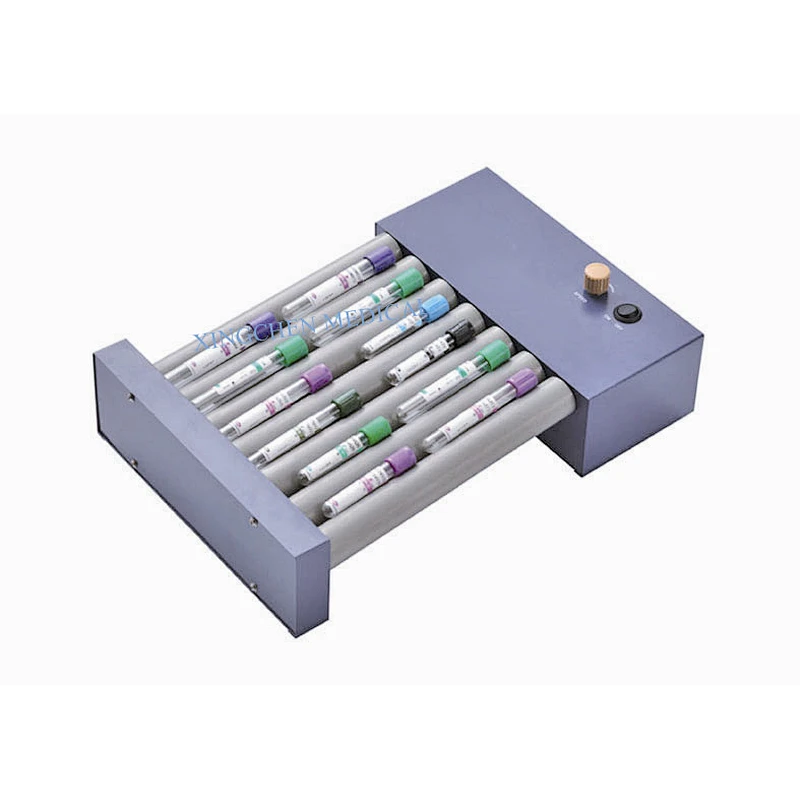

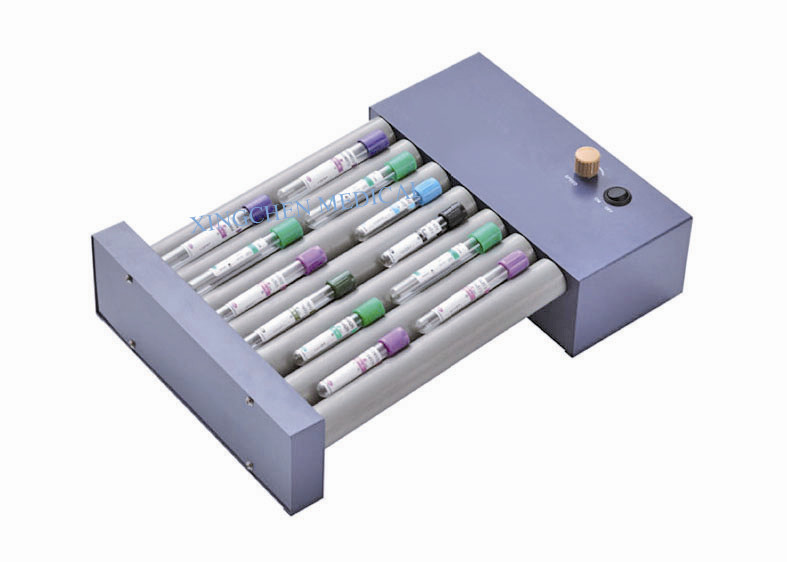

REF | XC140901 Roller Mixer | XC140902 Roller Mixer with Digital Display |
Picture |
|
|

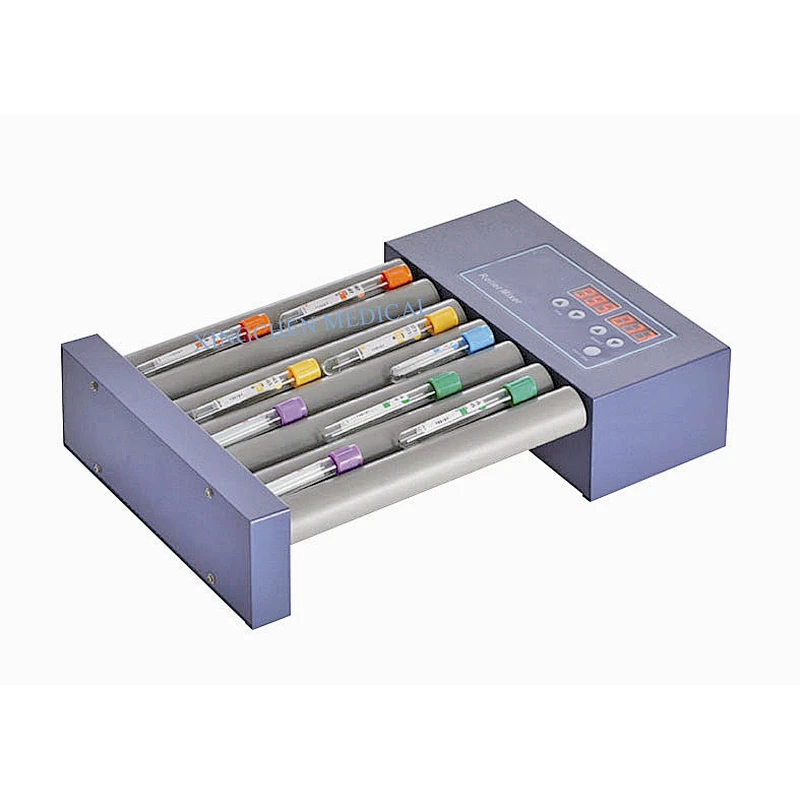

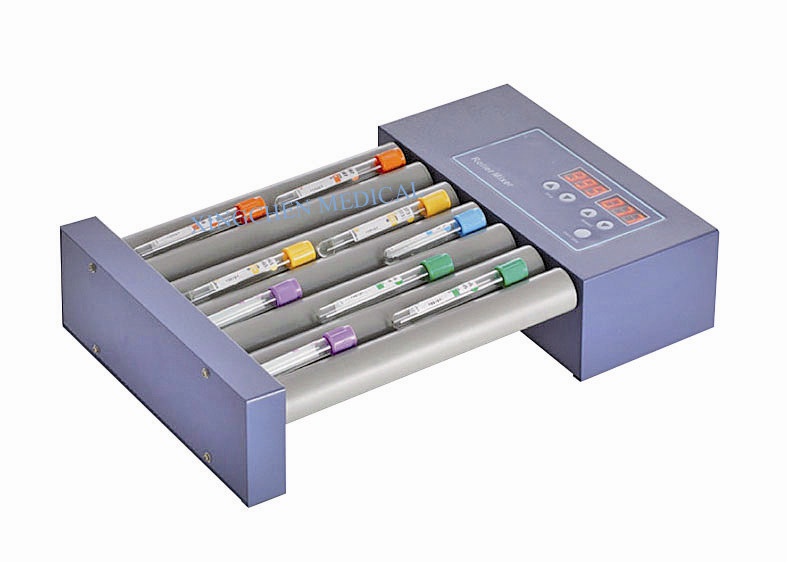

Characteristic | | LED with backlight can display the current speed, time and operation mode, convenient for reading and setting.
Precise digital time and speed setting can easily carry out the continuous operation mode.
Wide-range voltage design. Avoid the interference to the equipment by instable voltage. |
Technical Data
| Operation method : Rolling +swing
Swing Angle: 22mm±1mm
Rating Speed :20-80rpm
Max.Loading weight :1.5KG
Running model : Continuous
Input Voltage(frequency) :
AC 220V±10%(50/60HZ)
Output power :10W
Rolling length :236mm
Permissible relative moisture :80%
Permissible ambient temperature :5-50°C
Dimensions (W x H x D):410 x 270 x 100mm
Net weight: 4.5 KG | Operation method : Rolling +swing
Swing Angle : 22mm±1mm
Rating Speed :20-100rpm
Max.Loading weight :1.5KG
Running model : Continuous, Timing
Timing range: 0-999 min
Input Voltage(frequency) :
AC 100-240V(50/60HZ)
Output power :10W
Rolling length :236mm
Permissible relative moisture :80%
Permissible ambient temperature :5-50°C
Dimensions (W x H x D):410 x 270 x 100mm
Net weight: 4.0 KG |
